The VM850 Vacuum Excavator is an Australian-made diesel vacuum excavation machine designed for non-destructive digging, underground service locating, potholing and civil construction applications.
With an 850 L spoil tank, 550 CFM vacuum system, 500 L water tank and 3,500 PSI high-pressure water system, the VM850 provides powerful suction and water excavation in a compact, mobile package.

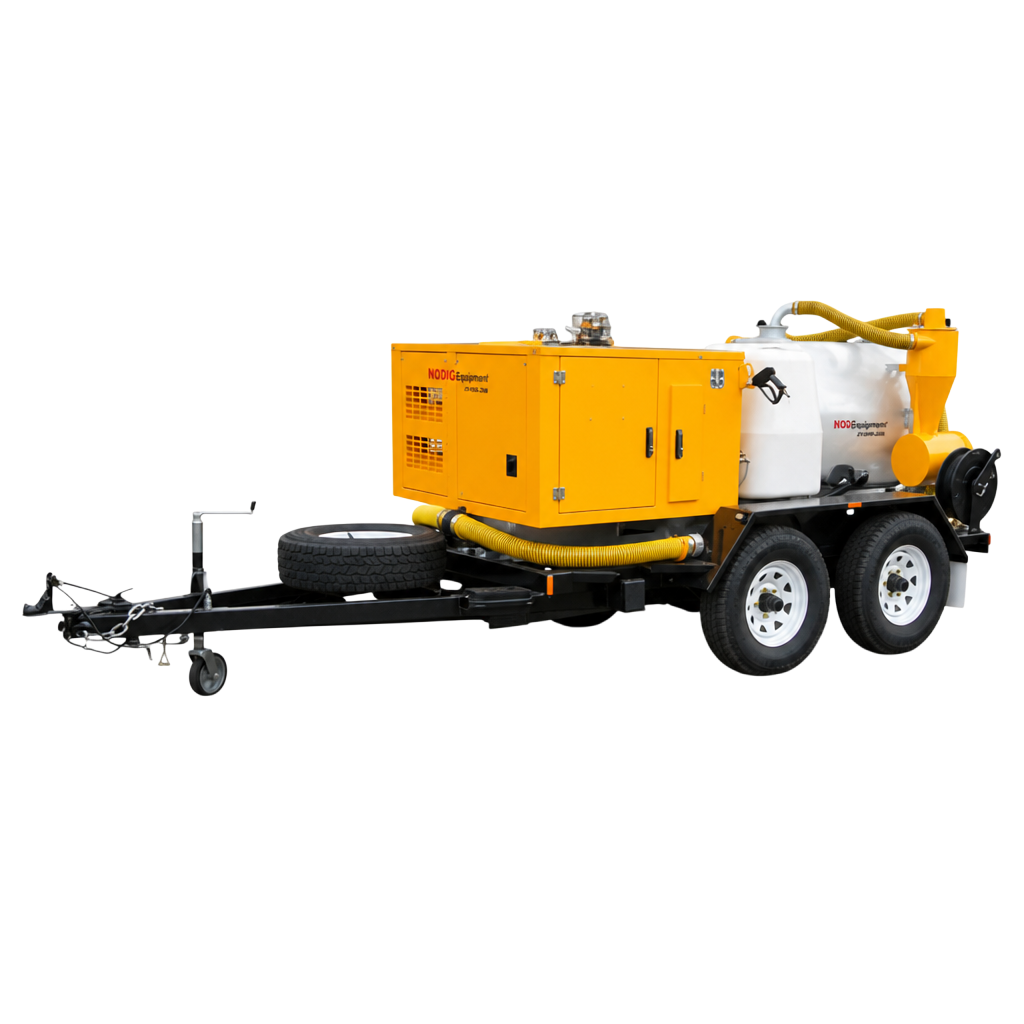

The VM850 is available as a heavy-duty 3.5 tonne trailer-mounted unit or skid-mounted system, allowing it to be configured to suit your vehicle and worksite requirements.
| Specification | VM850 |
|---|---|
| Spoil Tank Capacity | 850 L |
| Vacuum System | 550 CFM |
| Vacuum Pressure | 318 mm Hg / 15 in Hg |
| Engine | 34.9 HP Kohler KDW1404 Diesel |
| Clean Water Tank | 500 L |
| Water Pressure | 3,500 PSI |
| Water Flow | 15 L/min |
| Retractable Hose Reel | 15 m |
| Trailer Option | 3.5 t heavy-duty trailer |
| Trailer Brakes | Electric |
The VM850 is designed for non-destructive digging, where underground services and infrastructure need to be exposed without relying on conventional mechanical excavation.
The combination of high-pressure water and powerful vacuum suction allows excavated material to be removed and stored in the spoil tank.
The VM850 is particularly useful where underground services are present and controlled excavation is required.
The VM850 combines high-pressure water excavation with vacuum suction.
Water is directed at the excavation area to loosen soil and other material around underground services. The vacuum system then removes the loosened material and transfers it into the 850 L spoil tank.
This method provides contractors with a controlled way to expose underground infrastructure while reducing the risk associated with conventional mechanical excavation.
The VM850 is suited to contractors, utility companies, civil construction businesses and other operators who require mobile non-destructive digging equipment.
It is a particularly useful option for businesses carrying out:
If you need a machine that can move between sites while providing both high-pressure water excavation and vacuum recovery, the VM850 is a versatile mid-range option.
No Dig Equipment specialises in no-dig, vacuum excavation and underground service locating equipment for Australian contractors and industry.
Our vacuum excavators are designed with practical Australian applications in mind, from utility locating and civil construction through to infrastructure and remote-site work.
When purchasing a VM850, you can speak directly with a team familiar with vacuum excavation equipment, no-dig machinery and the requirements of Australian worksites.
The VM850 is manufactured in Australia and can be configured to suit the requirements of your business and application.
We can help you select the appropriate vacuum excavator configuration, accessories and mounting option for your work.
Our team can assist with parts, servicing and ongoing support for your No Dig Equipment machinery.
The VM850 can be configured to suit different worksite and vehicle requirements.
Towable by most utes and ideal for mobile excavation contractors.
Perfect for custom service vehicles, and integrated fleet solutions.
Customise your Vacuum Excavator with a range of optional accessories and upgrades.
The VM850 can be supplied with equipment designed to support everyday vacuum excavation and service locating work.
Standard equipment and configuration can include:
Equipment specifications may vary depending on the selected configuration. Contact No Dig Equipment to confirm the current VM850 specification and available options.
Additional equipment can be selected depending on your application and excavation requirements.
Our team can help you determine the most suitable accessories and configuration for your work.
The VM850 features a 550 CFM vacuum system designed to provide strong suction for excavation and material recovery.
The high-capacity vacuum system works alongside the water excavation system to efficiently remove loosened soil, sand, mud and other excavated material.
This makes the VM850 suitable for contractors who need a versatile vacuum excavation machine for utility and civil construction work.
The VM850 is equipped with a high-pressure water system operating at 3,500 PSI and 15 L/min.
The water system is used to break up and loosen soil during non-destructive excavation, while the vacuum system removes the material from the excavation.
A 500 L clean water tank provides an integrated water supply for excavation work.
The VM850 features an 850 litre spoil tank for collecting excavated material.
The tank provides a practical balance between machine size and spoil capacity, making the VM850 a versatile option for utility locating, potholing and general non-destructive digging applications.
The VM850 is used for non-destructive digging, underground service locating, potholing, daylighting, telecommunications work, civil construction, pit cleaning, sewer maintenance and other applications where underground infrastructure needs to be safely exposed.
The VM850 has an 850 litre spoil tank for collecting excavated material.
The VM850 has a 500 litre clean water tank for its high-pressure water excavation system.
The VM850 uses a 550 CFM vacuum system, providing powerful suction for removing loosened excavation material.
The VM850 is powered by a 34.9 HP Kohler KDW1404 diesel engine.
The VM850 water system operates at 3,500 PSI with a flow rate of 15 L/min.
Yes. The VM850 can be supplied on a 3.5 tonne heavy-duty trailer with electric brakes. A skid-mounted configuration is also available for suitable vehicles.
The VM850 has a dry machine weight of approximately 1,235 kg excluding the trailer.
Yes. The VM850 can be used for potholing, daylighting and exposing underground telecommunications infrastructure, including NBN-related work.
Yes. The VM850 is designed for a range of civil construction, utility locating and infrastructure applications where non-destructive excavation is required.
Contact No Dig Equipment to discuss your requirements, available configurations, trailer or skid mounting options and accessories.
Our team can help determine whether the VM850 is suitable for your application and provide a quote based on your requirements.
