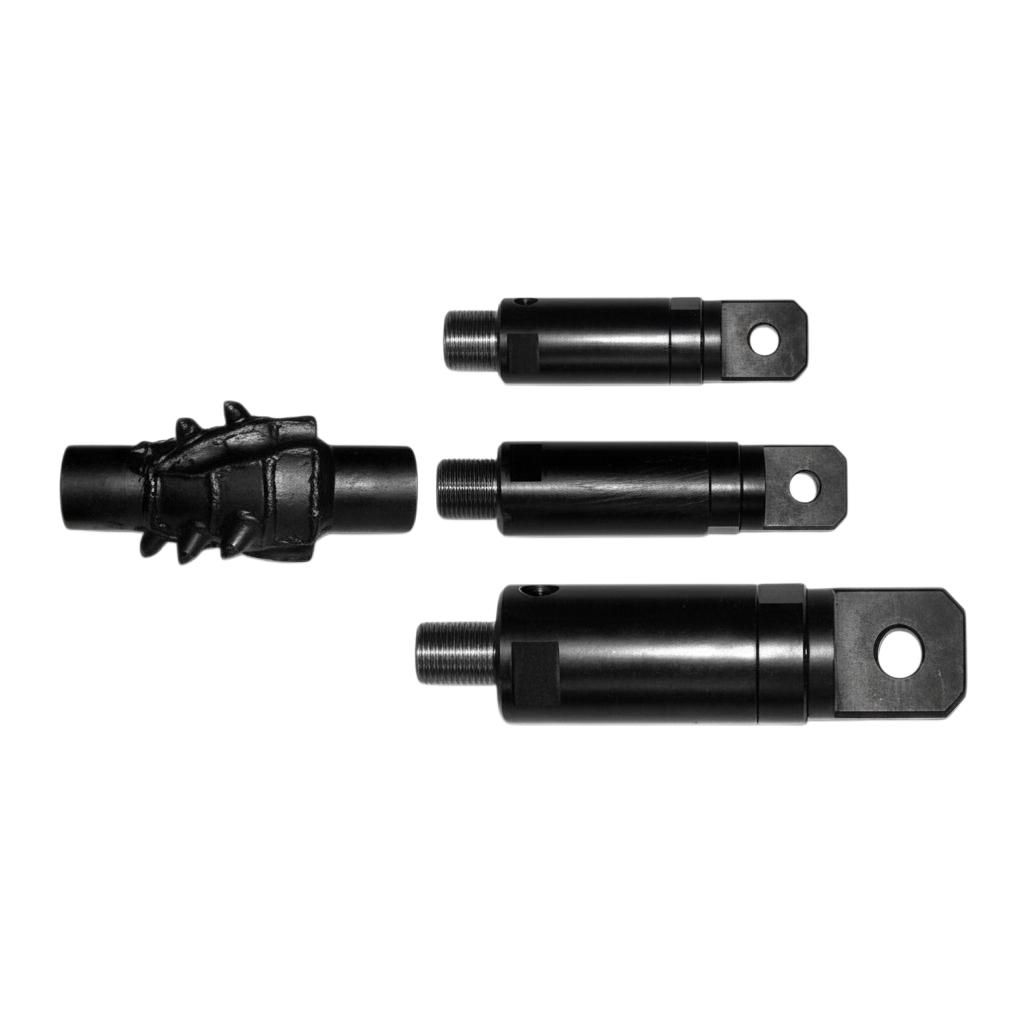

No Dig Equipment supplies HDD pullback swivels for horizontal directional drilling applications. Our 5-ton, 8-ton and 12-ton swivels are designed to handle the tensile, rotational and side loads generated during HDD pullback.
When choosing an HDD swivel, select a unit with a rated capacity equal to or greater than the pullback capacity of your drill rig. Our swivels use bearings designed to handle both thrust and radial loads, with seals that help protect the bearings from drilling mud, dirt and underground debris.

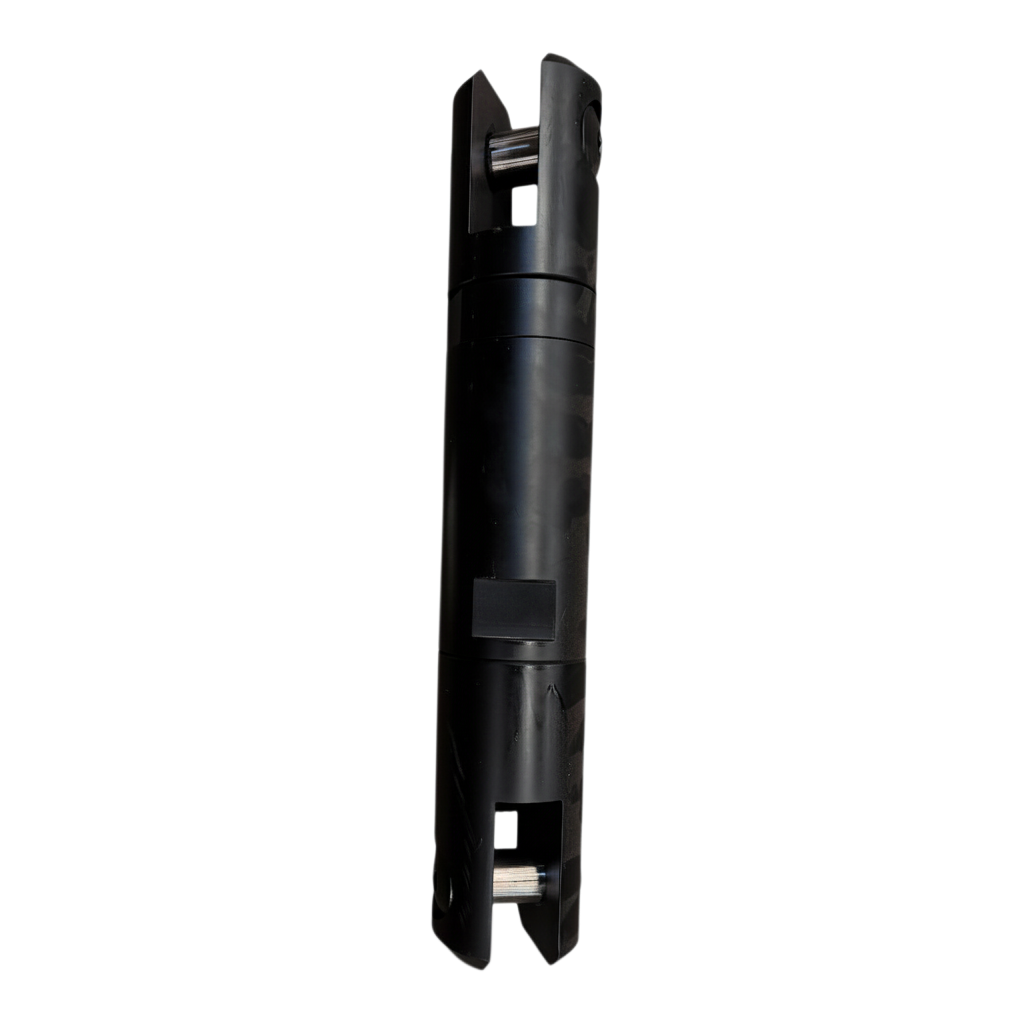

Dub swivels provide an alternative connection for HDD pulling applications. They can be configured with a pulling eye adaptor to connect the pulling assembly directly to the starter rod when back reaming is not required.
This setup can be useful for smaller pulling applications where a direct connection to the starter rod is required.
Features:
| Capacity | Part Number |
|---|---|
| 5 Tonne | SWD5 |
| 8 Tonne | SWD8 |
| 12 Tonne | SWD12 |
An HDD swivel connects the drill string or reamer to the product being installed during pullback. The swivel allows the drilling assembly to rotate while reducing the transfer of rotational forces to the product being pulled.
HDD swivels are exposed to high loads during pullback, so choosing the correct capacity is important for reliable performance and protecting the pulling assembly.
Features:
| Capacity | Part Number |
|---|---|
| 5 Tonne | SW5 |
| 8 Tonne | SW8 |
| 12 Tonne | SW12 |
Choosing the correct swivel starts with the pullback capacity of your HDD drill rig.

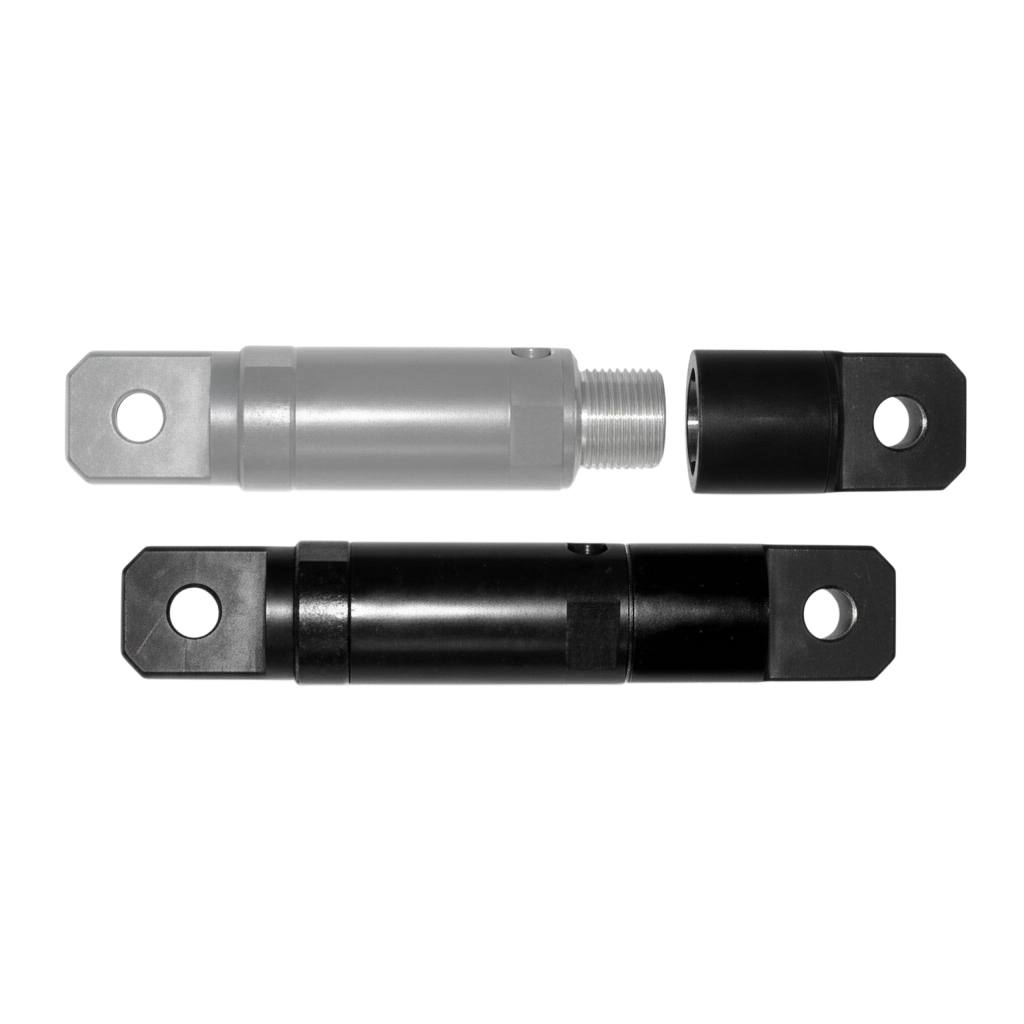

With a simple Pulling Eye Adaptor, turn your swivel into a dub swivel. See the table beside for available sizes.

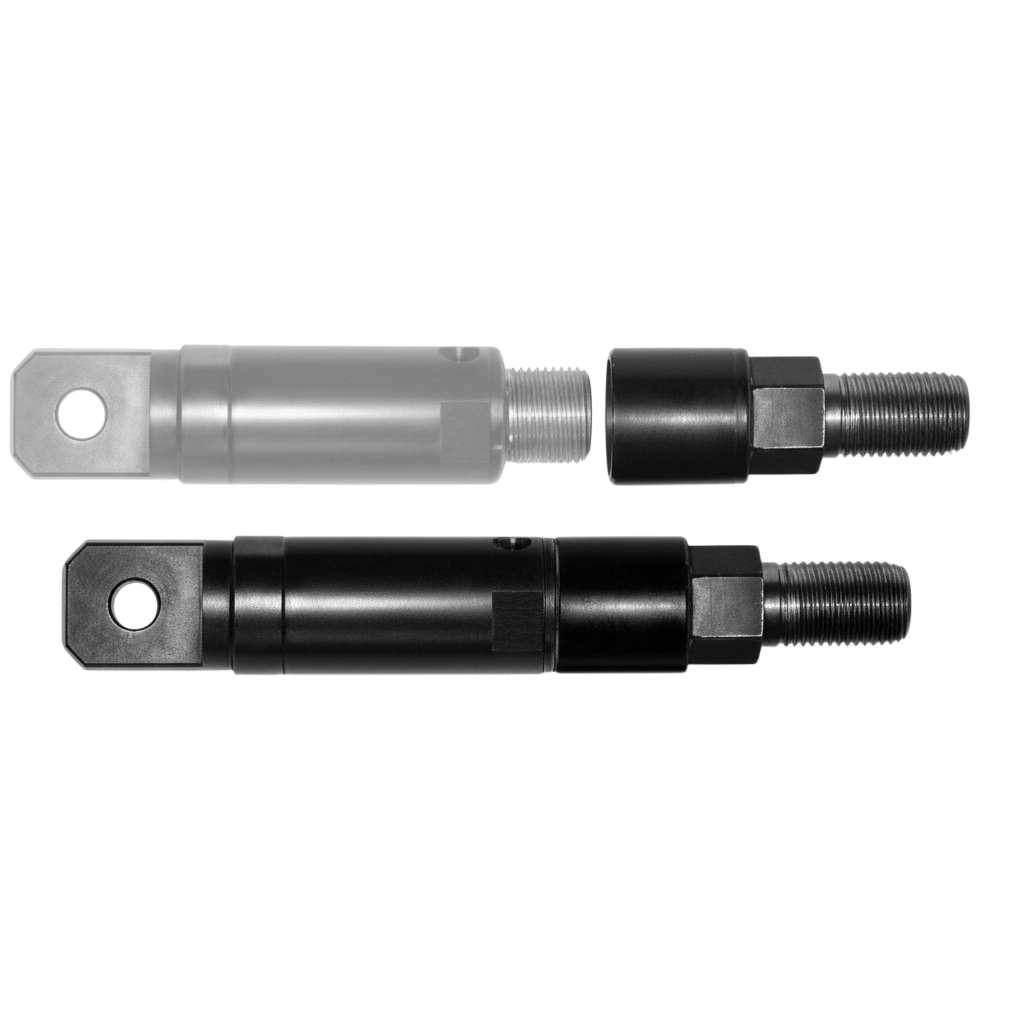

Adaptor suitable for Vermeer® and Ditch Witch® back reamers to suit our 5T, 8T & 12T Swivels.
Note : These adaptors are ideal for connecting small packages straight to the Starter Rod when back reaming is not required.
| Swivel / Adaptor | Part # |
|---|---|
| 5 T Swivel | SW5 |
| 8 T Swivel | SW8 |
| 12 T Swivel | SW12 |
| Pulling Eye Adaptor for 5 T Swivel | SP5 |
| Pulling Eye Adaptor for 9 T Swivel | SP9 |
| Pulling Eye Adaptor for 16 T Swivel | SP16 |
| Adaptor for Vermeer® D7x11 Back Reamers | SSV711 |
| Adaptor for Vermeer® D20x22, D23x30 and D24x40 Back Reamers | SSV2440 |
| Adaptor for Ditch Witch® JT1720 and JT2020 Back Reamers | SSD2020 |
An HDD swivel connects the drilling or reaming assembly to the product being installed during horizontal directional drilling. It allows the drilling assembly to rotate while reducing the transfer of rotational forces to the product and pulling assembly.
Choose an HDD swivel with a rated capacity equal to or greater than the maximum pullback capacity of your HDD drill rig. For example, a drill rig with a 12-ton pullback capacity should use a swivel rated for at least 12 tons.
An HDD swivel can be exposed to tensile, thrust, radial and rotational loads during HDD pullback. The swivel bearings are designed to allow rotation while handling these loads.
A Dub swivel is an HDD swivel that can be configured with a pulling eye adaptor for connecting smaller pulling assemblies directly to the starter rod when back reaming is not required.
Bearings allow the swivel to rotate while under load. This helps reduce rotational forces transferred through the pulling assembly during HDD pullback.
A pulling eye adaptor is used to connect the swivel to the product or pulling assembly. The required adaptor depends on the connection and pulling application.
Choosing the correct swivel depends on your drill rig pullback capacity, connection type and HDD application.
If you’re unsure which swivel or pulling eye adaptor you need, contact No Dig Equipment with your drill rig model and tooling details and our team can help identify the correct option.
