No Dig Equipment supplies directional drilling blades and bits for horizontal directional drilling (HDD) applications. Choose from Crocodile, Bear Claw and Sand Blades to suit different ground conditions, including hard-packed clay, rocky, mixed, sandy and loam soils.
Our HDD drilling blades are available for selected Vermeer and Ditch Witch drill rigs, with different cut sizes, bolt patterns and part numbers available. If you’re unsure which blade suits your drill or ground conditions, contact our team for assistance.
Different ground conditions require different cutting profiles. Our directional drilling blades are designed for specific applications:
Not sure which blade you need? Send us your drill make, model and ground conditions, and our team can help identify a suitable option.

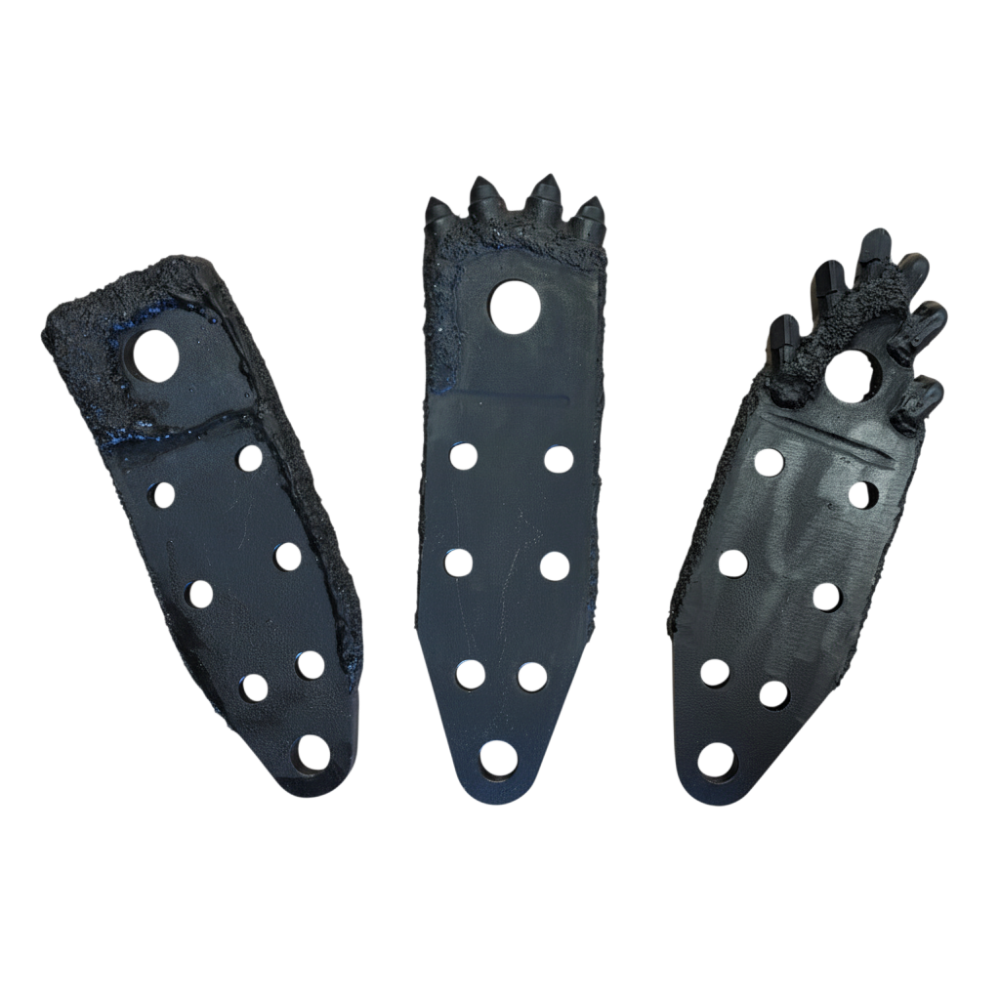

| Blade | Recommended Ground Conditions | Key Features |
|---|---|---|
| Crocodile Blade | Hard-packed clay, hard and rocky ground | Serrated carbide cutters, tapered profile and Tungchip hardfacing |
| Bear Claw Blade | Hard, rocky and mixed ground | Heavy-duty carbide cutting edge and wear-resistant construction |
| Sand Blade | Sand, sandy soil and loam | Cutting profile designed for softer ground and wear-resistant hardfacing |
The Crocodile Blade is designed for HDD drilling in hard-packed clay, hard ground and rocky conditions.
Its serrated carbide cutting edge provides aggressive ground penetration, while the tapered design helps reduce torque and power requirements. Tungchip hardfacing provides additional wear resistance in demanding drilling conditions.
Features:
Vermeer
| Cut Size | Part Number |
|---|---|
| 3″ | BVC075 |
| 4″ | BVC100 |
| 5″ | BVC125 |
Ditch Witch
| Cut Size | Part Number | Compatible Models |
|---|---|---|
| 3″ | BDC075 | JT920–JT922 |
| 4″ | BDC100 | JT1720–JT2720 |
| 5″ | BDC125 | JT3020 |
The Bear Claw Blade is a heavy-duty HDD drilling blade designed for hard, rocky and mixed ground conditions.
Its robust cutting profile and carbide teeth are designed to withstand demanding drilling applications while providing effective ground penetration.
| Cut Size | Part Number | Teeth |
|---|---|---|
| 3″ | BVB075 | 4 teeth |
| 4″ | BVB100 | 5 teeth |
| 5″ | BVB125 | 6 teeth |
| Cut Size | Part Number | Compatible Models | Teeth |
|---|---|---|---|
| 3″ | BDB075 | JT920–JT922 | 4 |
| 4″ | BDB100 | JT1720–JT2720 | 5 |
| 5″ | BDB125 | JT3020 | 6 |
The Sand Blade is designed for directional drilling through sandy and loam ground conditions.
Its cutting profile is suited to softer ground, while hardfacing along the wear areas helps protect the blade during drilling.
| Cut Size | Part Number |
|---|---|
| 3″ | BVS075 |
| 4″ | BVS100 |
| 5″ | BVS125 |
| Cut Size | Part Number | Compatible Models |
|---|---|---|
| 3″ | BDS075 | JT920–JT922 |
| 4″ | BDS100 | JT1720–JT2720 |
| 5″ | BDS125 | JT3020 |
HDD drilling blades are available in different sizes and bolt patterns to suit specific drill rigs. Always confirm the drill manufacturer, model, cut size and bolt pattern before ordering.
If you cannot find your drill model listed, contact No Dig Equipment. We can help you identify the correct directional drilling blade for your application.
No Dig Equipment supplies HDD tooling and equipment for horizontal directional drilling applications across Australia.
Our range includes directional drilling blades, drill rods, rock tools, reamers, transmitter housings and other HDD tooling for a range of drilling applications.
The Crocodile directional drilling blade is designed for hard-packed clay, hard ground and rocky conditions. Its serrated carbide cutters and Tungchip hardfacing are designed to provide cutting performance and wear resistance in demanding ground.
The Sand Blade is designed for sandy and loam ground conditions. Its cutting profile is suited to softer ground and includes hardfacing to help improve wear resistance.
No Dig Equipment supplies directional drilling blades for selected Vermeer and Ditch Witch HDD drill rigs. Available options include Crocodile, Bear Claw and Sand Blades, with different cut sizes and bolt patterns available for specific models.
The correct blade depends on your drill model, required cut size, bolt pattern and ground conditions. Contact No Dig Equipment with these details and our team can help identify a suitable directional drilling blade.
Tell us your drill make, model and ground conditions, and our team can help you find a suitable directional drilling blade.
Contact No Dig Equipment today for pricing and availability.
