A Tri-Lobe Blower is the heart of every vacuum excavator, providing the high-volume airflow needed to generate powerful vacuum performance. Designed for continuous operation, tri-lobe blowers deliver reliable suction for hydro excavation, non-destructive digging (NDD), slurry removal and underground service locating.

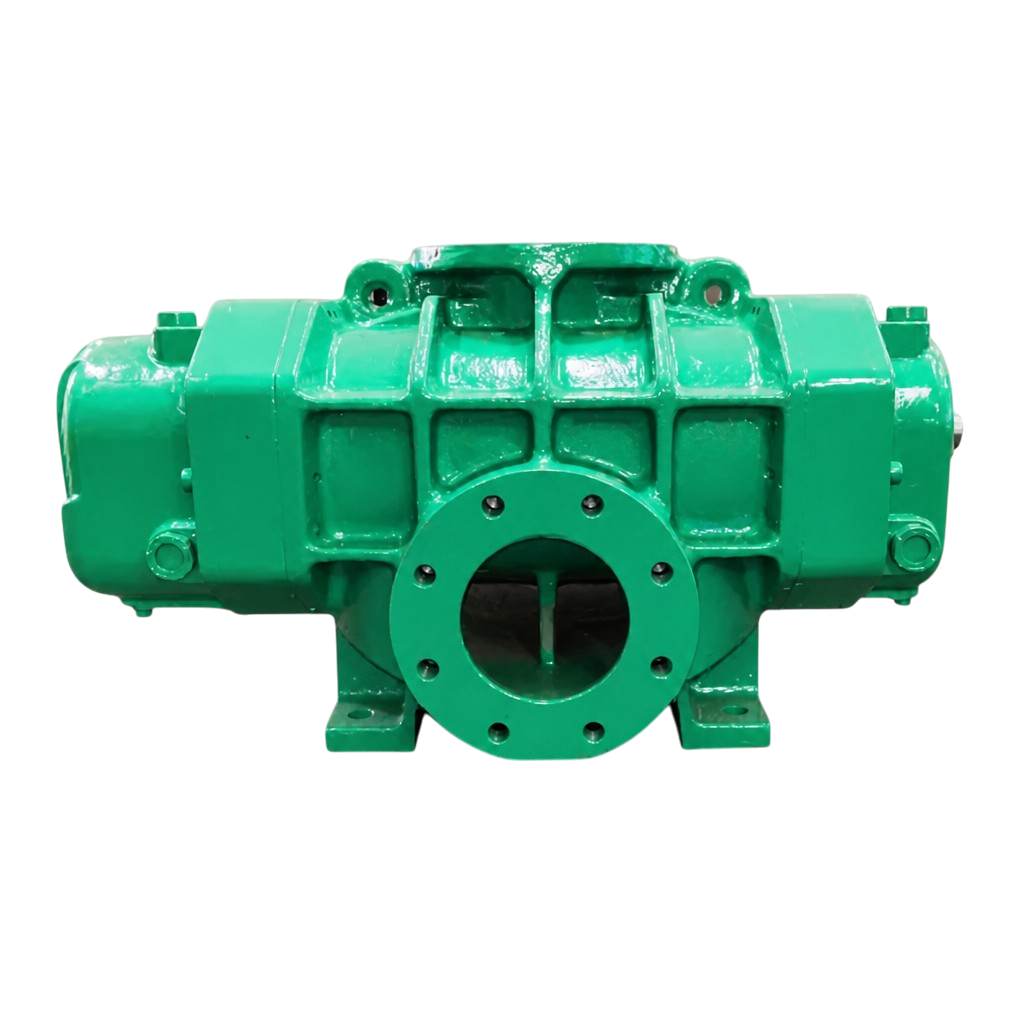

At No Dig Equipment, we supply high-quality Greatech Roots Tri-Lobe Blowers built for demanding Australian conditions. With conservative operating speeds, robust construction and low maintenance requirements, these blowers provide dependable performance and long service life for vacuum excavation applications.
Whether you’re replacing an existing blower or building a new vacuum system, our tri-lobe blowers deliver the airflow and reliability professional contractors depend on.
We supply Greatech Roots Tri-Lobe Blowers in the following models:
| Model | Inlet Diameter | Suitable Applications |
|---|---|---|
| G100V | 100 mm | Compact vacuum excavators, hydro excavation units and custom vacuum systems |
| G150V | 150 mm | Larger vacuum excavators, hydrovacs and high-capacity vacuum systems |
If you’re unsure which model best suits your vacuum excavation equipment, our experienced team can help you select the right blower for your application.
Greatech Tri-Lobe Blower is the most popular among vacuum excavation manufacturers. With Conservative operating speeds, these blowers have low maintenance and extended life.
| G150V Performance Table | ||||||||||||||||
| RPM | -1000mmAq | -2000mmAq | -2500mmAq | -3000mmAq | -3500mmAq | -4000mmAq | -4500mmAq | -5000mmAq | ||||||||
| Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | |
| 750 | 13.72 | 3.39 | 12.93 | 6.49 | 12.50 | 7.94 | 12.04 | 9.33 | 11.54 | 10.66 | 11.00 | 11.94 | 10.43 | 13.16 | 9.84 | 14.35 |
| 900 | 16.89 | 4.07 | 16.11 | 7.79 | 15.69 | 9.52 | 15.22 | 11.20 | 14.71 | 12.79 | 14.18 | 14.32 | 13.61 | 15.80 | 13.02 | 17.22 |
| 1050 | 20.07 | 4.75 | 19.29 | 9.08 | 18.87 | 11.11 | 18.40 | 13.05 | 17.89 | 14.92 | 17.37 | 16.72 | 16.79 | 18.43 | 16.19 | 20.10 |
| 1200 | 23.26 | 5.43 | 22.46 | 10.38 | 22.04 | 12.70 | 21.58 | 14.92 | 21.07 | 17.05 | 20.54 | 19.10 | 19.97 | 21.07 | 19.37 | 22.96 |
| 1350 | 26.43 | 6.11 | 25.65 | 11.67 | 25.22 | 14.28 | 24.76 | 16.79 | 24.25 | 19.18 | 23.72 | 21.49 | 23.14 | 23.70 | 22.56 | 25.83 |
| 1500 | 29.61 | 6.78 | 28.83 | 12.97 | 28.41 | 15.87 | 27.93 | 18.66 | 27.43 | 21.32 | 26.90 | 23.87 | 26.33 | 26.34 | 25.73 | 28.70 |
| 1650 | 32.80 | 7.46 | 32.01 | 14.27 | 31.58 | 17.46 | 31.12 | 20.51 | 30.15 | 23.45 | 30.08 | 26.27 | 29.51 | 28.97 | 28.91 | 31.58 |
| G100V Performance Table | ||||||||||||||||
| RPM | -1000mmAq | -2000mmAq | -2500mmAq | -3000mmAq | -3500mmAq | -4000mmAq | -4500mmAq | -5000mmAq | ||||||||
| Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | Qs | La | |
| 850 | 5.96 | 1.59 | 5.35 | 3.05 | 5.00 | 3.73 | 4.61 | 4.37 | 4.21 | 4.99 | 3.78 | 5.59 | 3.32 | 6.17 | 2.82 | 6.73 |
| 1000 | 7.26 | 1.87 | 6.64 | 3.58 | 6.29 | 4.37 | 5.91 | 5.15 | 5.51 | 5.88 | 5.08 | 6.59 | 4.61 | 7.26 | 4.12 | 7.92 |
| 1150 | 8.56 | 2.15 | 7.94 | 4.11 | 7.59 | 5.03 | 7.21 | 5.92 | 6.81 | 6.76 | 6.38 | 7.57 | 5.91 | 8.35 | 5.42 | 9.10 |
| 1300 | 9.86 | 2.44 | 9.24 | 4.65 | 8.89 | 5.69 | 8.51 | 6.69 | 8.11 | 7.64 | 7.67 | 8.56 | 7.21 | 9.44 | 6.72 | 10.29 |
| 1450 | 11.15 | 2.71 | 10.54 | 5.19 | 10.19 | 6.34 | 9.81 | 7.46 | 9.40 | 8.53 | 8.97 | 9.55 | 8.51 | 10.53 | 8.01 | 11.48 |
| 1600 | 12.45 | 2.99 | 11.83 | 5.72 | 11.48 | 7.00 | 11.10 | 8.23 | 10.70 | 9.41 | 10.27 | 10.54 | 9.81 | 11.62 | 9.31 | 12.66 |
| 1750 | 13.75 | 3.28 | 13.13 | 6.26 | 12.78 | 7.66 | 12.40 | 9.00 | 12.00 | 10.29 | 11.57 | 11.52 | 11.10 | 12.71 | 1.61 | 13.84 |
A tri-lobe blower is a positive displacement blower that generates the airflow required to create vacuum suction. As the three-lobed rotors rotate, they move a constant volume of air through the system, producing reliable vacuum performance without requiring priming.
Because they deliver continuous airflow at relatively low operating speeds, tri-lobe blowers are widely used in vacuum excavators and hydrovacs where reliability and durability are essential. No Dig Equipment uses positive displacement tri-lobe blowers throughout its VM range of vacuum excavators
With over 25 years of experience supplying trenchless technology equipment across Australia, No Dig Equipment is trusted by contractors working in civil construction, mining, utilities and infrastructure.
When you choose No Dig Equipment, you benefit from:
A reliable blower is essential to the performance and efficiency of every vacuum excavation system. Our tri-lobe blowers are engineered for continuous operation while minimising maintenance and downtime.
✔ High-volume airflow for powerful vacuum performance
✔ Low maintenance design
✔ Long service life
✔ Reliable continuous-duty operation
✔ Heavy-duty construction
✔ Ideal for hydro excavation and slurry removal
✔ Genuine replacement blowers available
Our tri-lobe blowers are suitable for:
The blower is responsible for generating the vacuum needed to remove soil, slurry and debris from excavation sites.
A high-quality tri-lobe blower helps:
With fewer moving parts and conservative operating speeds, tri-lobe blowers are recognised for their durability and dependable performance in demanding working environments.
With over 25 years of experience supplying trenchless technology equipment, No Dig Equipment understands the demands placed on vacuum excavation equipment throughout Australia.
Our tri-lobe blowers are selected for their reliability, efficiency and long service life, making them suitable for civil construction, utilities, mining and infrastructure projects nationwide.
A tri-lobe blower is a positive displacement blower that generates the airflow required to create vacuum suction in vacuum excavators and hydro excavation equipment.
Tri-lobe blowers deliver consistent airflow, require minimal maintenance and provide reliable continuous operation, making them ideal for demanding vacuum excavation applications.
Tri-lobe blowers offer high airflow, long service life, low maintenance requirements, reliable vacuum performance and excellent durability in harsh working conditions.
Yes. No Dig Equipment supplies genuine Greatech Roots Tri-Lobe Blowers and replacement vacuum excavation components for customers throughout Australia.
Looking for a Tri-Lobe Blower for your vacuum excavator?
Our experienced team can help you select the right blower for your machine and provide expert advice on replacement parts and vacuum system performance.
