Trenchless Technology SolutionA vacuum excavator is a highly specialized piece of non-destructive digging (NDD) equipment that utilizes pressurized water or air alongside high-powered suction to clear soil and debris. By shifting away from traditional mechanical excavator buckets, this method safely exposes sensitive underground assets—such as gas, water, and telecommunication lines—without risking costly utility strikes. This makes vacuum excavation an essential, cost-effective solution for precision potholing, daylighting, and site cleanup across Australian mining and civil construction projects.
Often referred to in the industry as a “sucker truck” or “hydrovac,” these machines have fundamentally transformed subsurface utility engineering. Whether you are managing a major infrastructure asset or preparing a local directional drilling site, understanding how vacuum excavation works is crucial for ensuring safety and regulatory compliance.
Vacuum excavators operate by combining two distinct systems working in perfect tandem: a high-pressure breaking system and a high-volume suction system.
Ground Disruption: The operator uses a handheld lance to direct either high-pressure water or compressed air at the ground. This liquid or air stream rapidly breaks down the soil, clay, or gravel matrix without damaging solid structures like plastic conduits, copper pipes, or fiber optic cables.
Debris Extraction: Simultaneously, a powerful positive displacement blower or vacuum pump generates high-velocity suction (measured in CFM – Cubic Feet per Minute). This suction pulls the displaced earth and slurry away from the excavation zone through a heavy-duty hose.
Containment & Disposal: The material is deposited directly into an onboard spoil or debris tank. Once the tank reaches capacity, the truck or trailer travels to an approved facility for safe, environmentally compliant disposal.
How it works: Utilizes high-pressure water pumps (often operating at 3,000 to 4,000 PSI) to slice through dense, heavily compacted soils and stubborn clay.
Best for: Rapid digging speeds in challenging ground conditions.
Consideration: Creates a wet slurry mixture within the spoil tank, which requires specialized disposal and cannot be reused immediately as backfill.
Implementing vacuum excavation over mechanical digging provides massive operational advantages, especially under modern Australian safety frameworks.
Traditional excavation risks hitting buried assets, which can lead to catastrophic project delays, heavy fines, and severe operator injury. Vacuum excavation satisfies the strict safety requirements of Before You Dig Australia (BYDA). It allows contractors to achieve absolute visual verification of utilities, aligning with AS 5488 (Classification of Subsurface Utility Information) standards.
Because the vacuum hose and lance are highly controlled, operators can dig precise holes as small as a few centimeters in diameter. This process, known as potholing or daylighting, minimizes the overall site footprint, leaving surrounding roadways, pavements, and landscape roots entirely undisturbed.
By minimizing the excavation footprint, you dramatically lower the volume of displaced earth. Less digging means reduced fuel emissions, less heavy traffic on public roads, and a significantly smaller environmental mitigation phase post-construction.
Different civil projects demand varying tank volumes and suction profiles. Below is a breakdown of our Australian-engineered vacuum excavation systems designed to match your specific operational capacity:
| Model | Spoil Tank Capacity | Ideal Application | Operation Type |

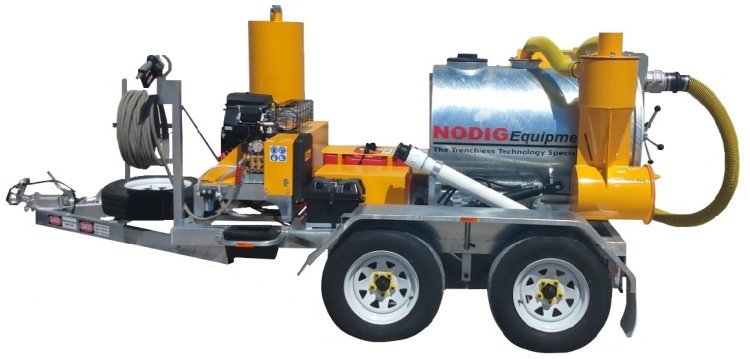

| VM400 | 400 Litres | Tight-access urban sites, small-scale utility locating, and light towing. | Trailer-Mounted / Compact |

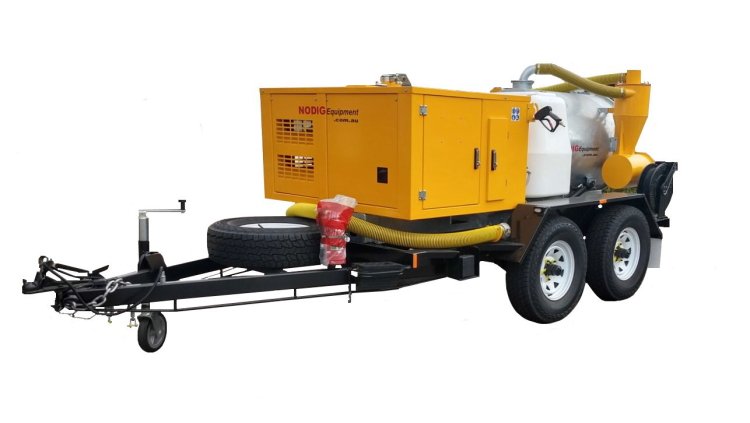

| VM850 | 850 Litres | Mid-sized civil construction, foundational cleaning, and standard potholing. | High-Efficiency Trailer |

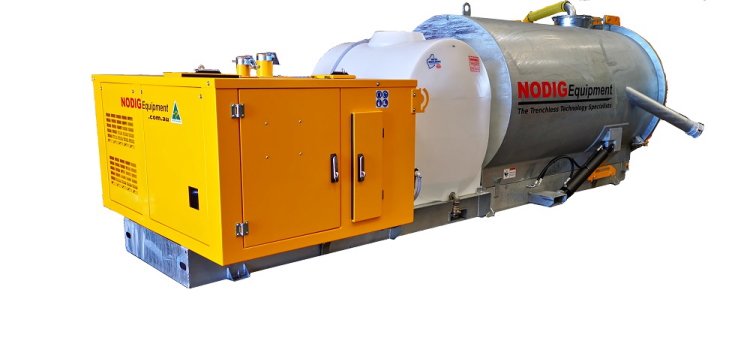

| VM2000-3000 | 2,000 – 3,000 Litres | Continuous commercial operations, extensive utility clearance, and deep trenching. | Truck-Mounted / Heavy Duty |

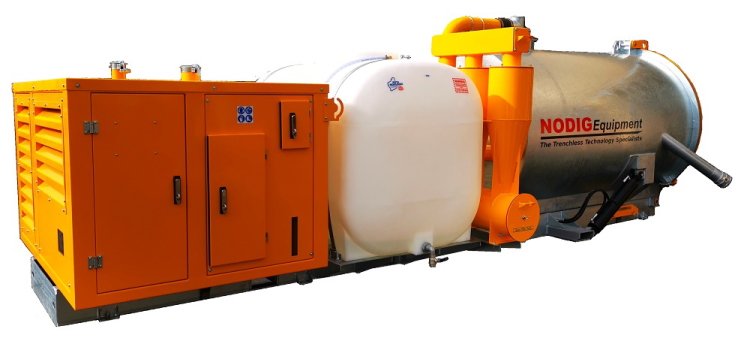

| VM4000 | 4,000+ Litres | Major infrastructure projects, high-volume slurry collection, and long-duration site work. | Premium Industrial Truck |
A vacuum excavator is a non-destructive digging (NDD) machine that uses high-pressure water or air to safely fracture soil, combined with a high-powered vacuum system to suction the resulting debris into an onboard containment tank. This process allows operators to visually expose buried utilities without risking mechanical damage to pipes or cables.
Vacuum excavation is the industry standard for utility locating (potholing) because it virtually eliminates utility strikes. Unlike mechanical backhoes or hand shovels, the non-destructive nature of pressurized water and air fully protects critical buried assets—such as fiber optic cables, high-voltage lines, and gas mains—while fully adhering to AS 5488 standards.
Hydro excavation uses high-pressure water to rapidly break down compacted soils, creating a wet slurry that must be disposed of offsite. Air vacuum excavation uses compressed air to break up dry earth, keeping the material completely dry so it can be immediately reused as backfill on the job site.
For over two decades, No Dig Equipment has manufactured high-durability trenchless and vacuum excavation machinery, tailored specifically for the harsh Australian environment. Our engineering focus prioritizes maximum CFM performance, low maintenance cycles, and strict adherence to local workplace safety regulations.
Ready to add non-destructive digging capabilities to your fleet? Contact the No Dig Equipment Team Today
Or check out our VM400 vacuum excavators for hire, ideal for small and short duration jobs and try before you buy.
