Fly Cutter Reamers

Aggressive Cutting and Superior Spoil Clearance in Mixed Ground Conditions

Our Fly Cutter Back Reamers are engineered to tackle mixed ground conditions, including clay, abrasive soils, and even cobble-laden formations. They are designed with winged extensions and carbide shark teeth that provide a powerful cutting action while efficiently displacing cuttings to prevent clogging or hole instability.

Ideal for Clay, Abrasive Soils & Mixed Ground Conditions

Our Fly Cutter Reamers are particularly effective in challenging terrain where traditional compaction reamers may struggle. Their open body and winged flutes allow for large cobbles and dense soil to pass freely, while maintaining consistent mixing and spoil evacuation.

How the Fly Cutter Reamer Works

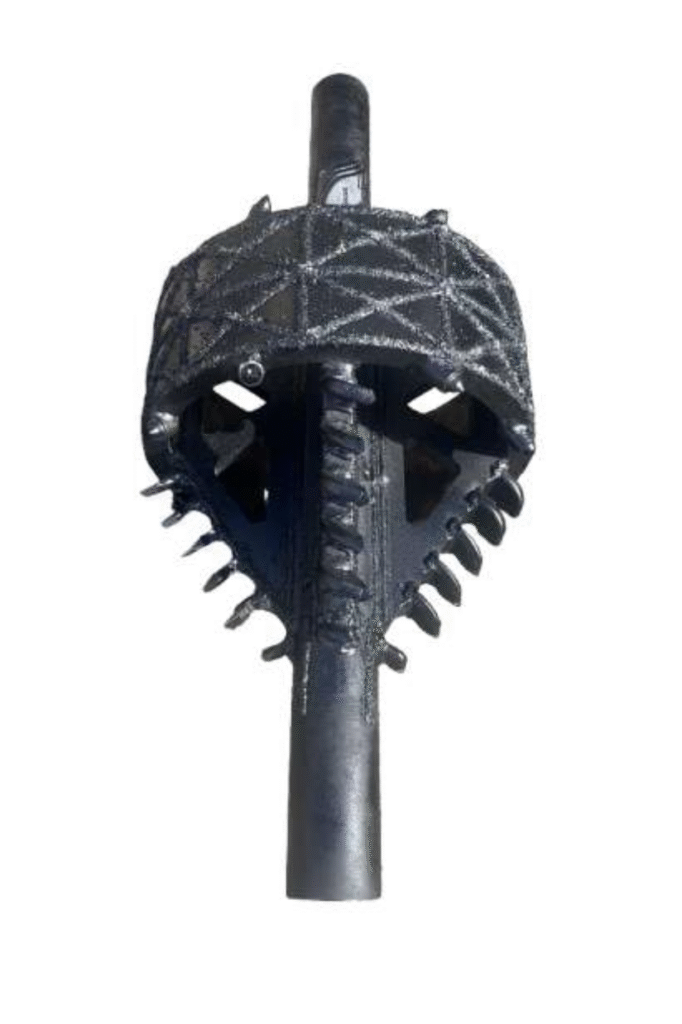

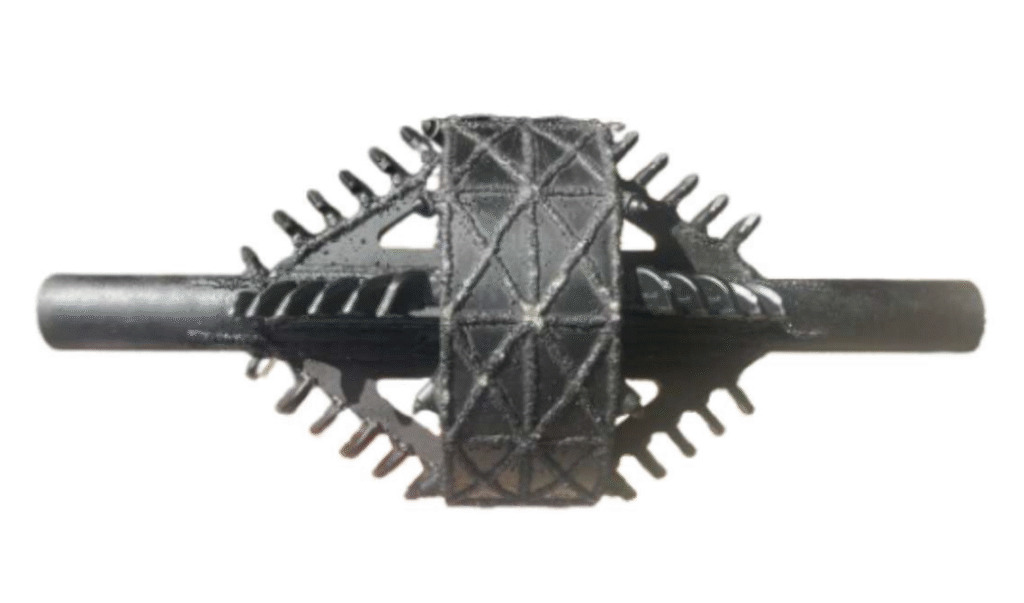

The Fly Cutter features carbide teeth mounted to high-torque arms that shred through tough soils and light rock as it’s pulled back through the borehole.

• The conical body supports smooth cutting action
• Large openings between wings allow unrestricted flow of drilling fluids and spoil
• Aggressive cutting structure prevents build-up and blockage

This allows the reamer to keep pace with your forward progress,
increasing operational efficiency.

Engineered for Efficiency and Longevity

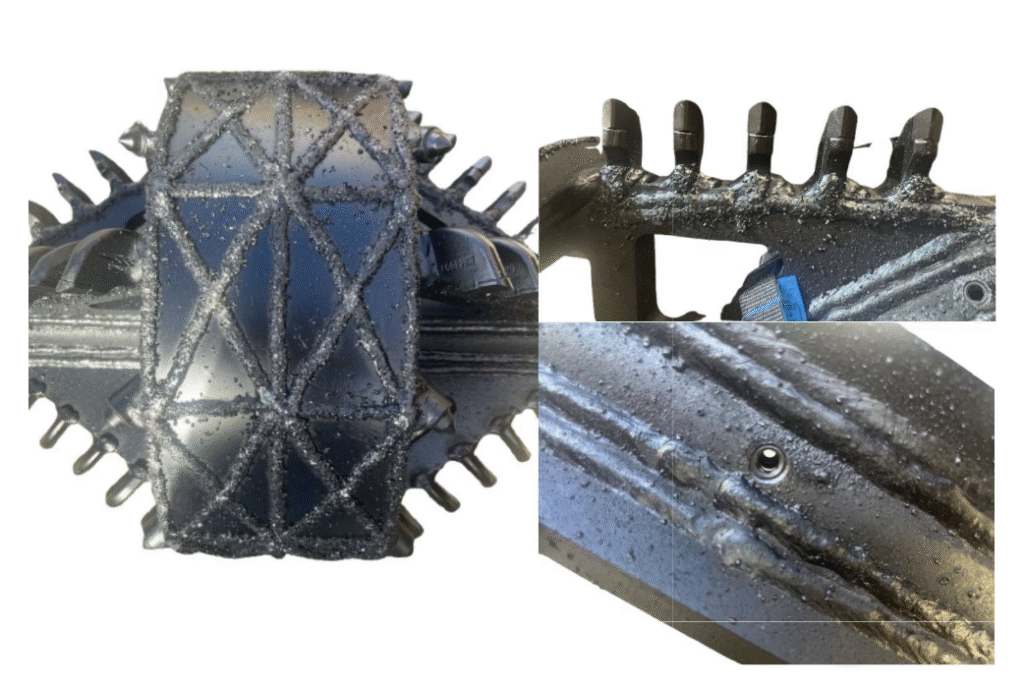

Each Fly Cutter Back Reamer is built with high-strength steel, carbide shark teeth, and additional tungsten carbide hardfacing for enhanced wear resistance. A central stabilising ring helps guide the reamer and ensures a smooth, round borehole, reducing pipe drag and product damage during pullback. Our Fly Cutter Reamers are designed with rebuildability in mind, making them a cost-effective long-term solution for your HDD operations.

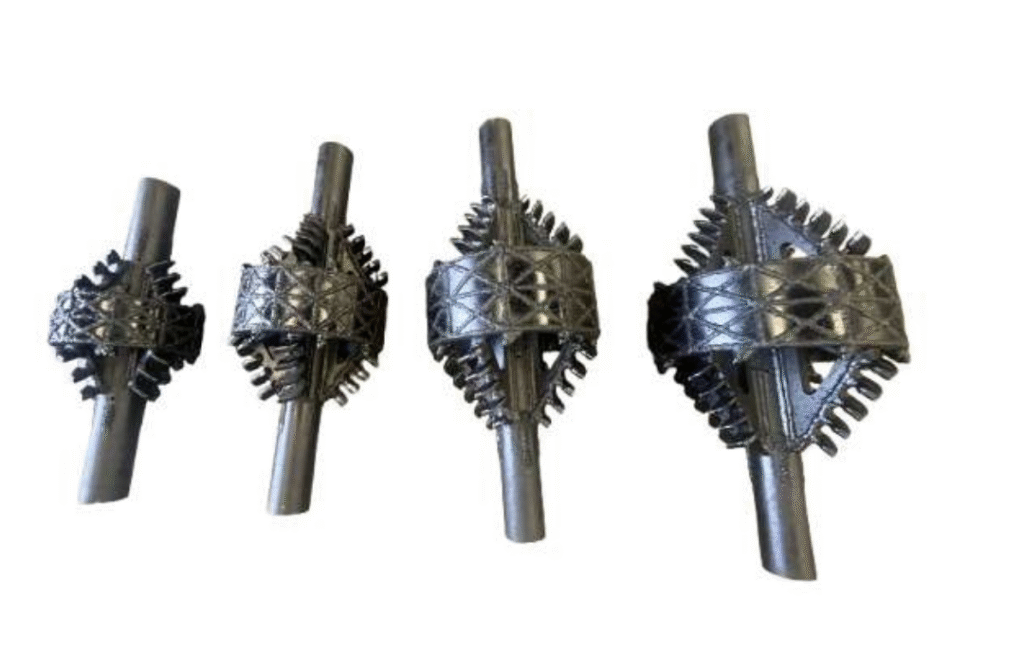

Available Sizes

Fly Cutter
Cut SizePart #
Fly Cutter 250mm DiameterRF250
Fly Cutter 300mm DiameterRF300
Fly Cutter 350mm DiameterRF350
Fly Cutter 400mm DiameterRF400

Key Features at a Glance

Carbide Shark Teeth for aggressive ground engagement
Large Winged Flutes for spoil flow and mixing action
Additional Tungsten Carbide Hardfacing for extended wear life
Exta Wide Stabilising Ring to maintain borehole roundness
Balanced Wing Design helps maintain directional control and stability — ideal for pushing back in the event the package becomes stuck in the borehole
