Description

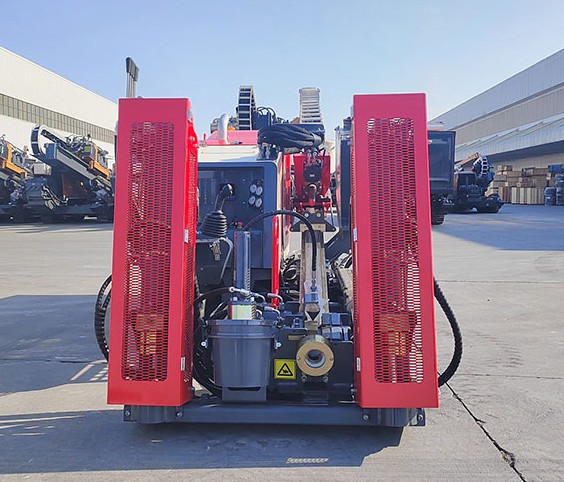

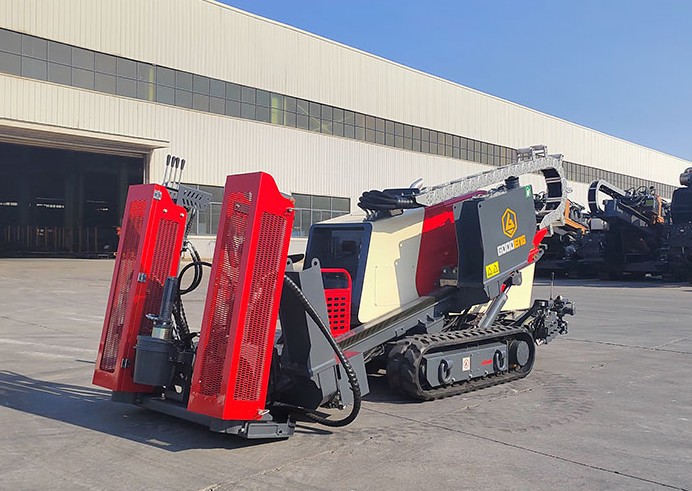

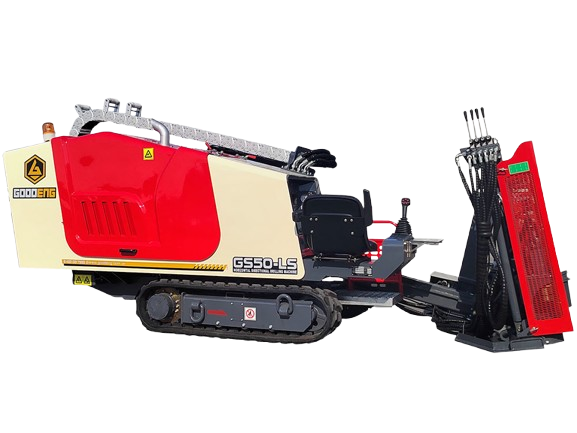

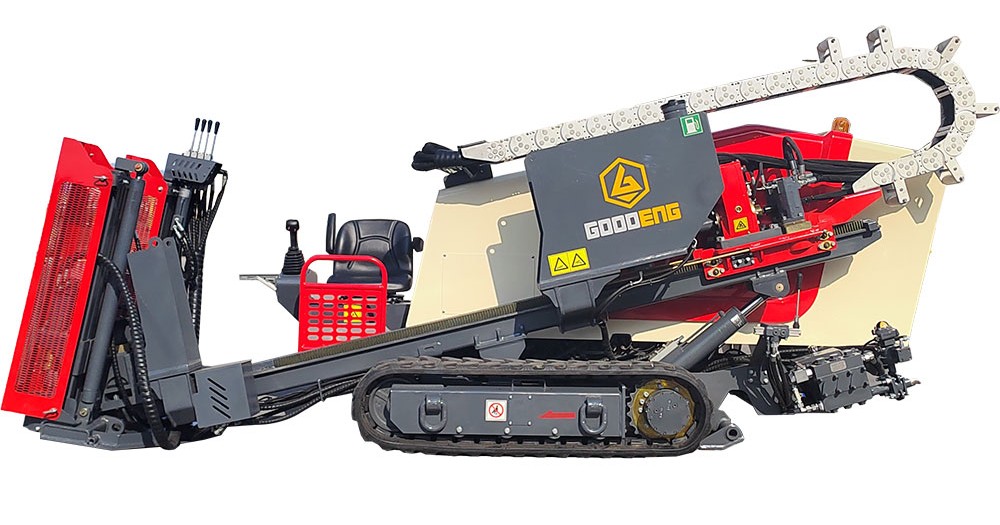

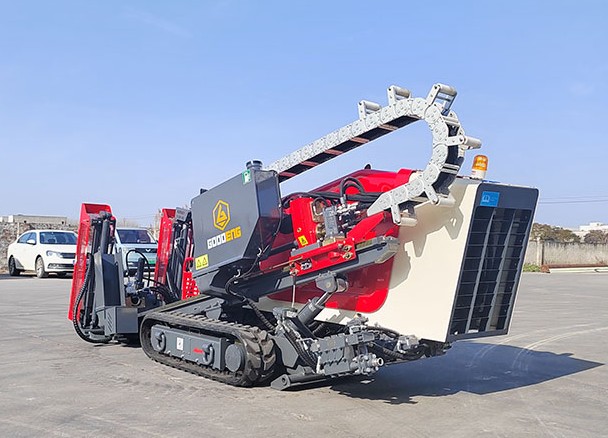

We offer the Goodeng GS50-LS Horizontal Directional Drill (HDD) — a compact, high-performance drilling machine designed for efficient and reliable trenchless installation of underground services.
Built for Australian conditions, the GS50-LS combines powerful thrust and torque with a user-friendly control system, making it the ideal solution for contractors working on civil, construction, and utility projects across Perth and nationwide.
If you’re looking for a dependable horizontal directional drilling machine for sale in Australia, the GS50-LS delivers performance, durability, and value.
What Can You Do with the GS50-LS Directional Drill?
The Goodeng GS50-LS directional drill is suitable for a wide range of trenchless drilling applications, including:
- Underground utility installation (water, gas, and power lines)
- NBN and telecommunications fibre installation
- Road, footpath, and driveway crossings
- Conduit and cable laying
- Civil construction and infrastructure projects
- Trenchless pipe installation and replacement
- Tight-access and urban drilling environments
Key Features of the GS50-LS
The GS50-LS directional drill comes equipped with the following features:
- 51 kN (11,460 lbf) thrust and pullback capacity for strong drilling performance
- 2250 Nm maximum torque for efficient boring in varied ground conditions
- Up to 215 rpm rotation speed
- 61 m/min thrust and pullback speed for fast job completion
- Reliable rack and pinion drive system
- Powerful 43 kW (58 Hp) Yanmar diesel engine
- High-performance mud system (6 MPa / 870 psi, 75 L/min flow rate)
- Drill rod capacity up to 80 metres (44 rods)
- 14°–17° drill entry angle for versatile applications
- Compact footprint and 4100 kg operating weight for easy transport
- Ergonomic operator station for improved comfort and productivity
- Single joystick control for precise and simple operation
- Hydraulic breakout system for efficiency on-site
- Auto rod greaser to reduce wear and maintenance
- Strike alert system for enhanced job site safety
Why Choose the Goodeng GS50-LS HDD?
- Ideal horizontal directional drill for small to medium projects
- Designed for tight access and urban job sites
- Low maintenance and easy to operate
- Durable and reliable in harsh Australian conditions
- Excellent value HDD machine for contractors and civil crews
Buy a Horizontal Directional Drill in Perth
Looking to purchase a horizontal directional drill in Perth or anywhere in Australia? The Goodeng GS50-LS HDD machine is a proven solution for efficient trenchless drilling.
Contact Us for a Quote
Ready to upgrade your equipment? Contact us today for pricing, availability, or more information on the Goodeng GS50-LS Horizontal Directional Drill and our full range of trenchless drilling equipment.
