DigiTrak ARES - Trenchless Technology Solution

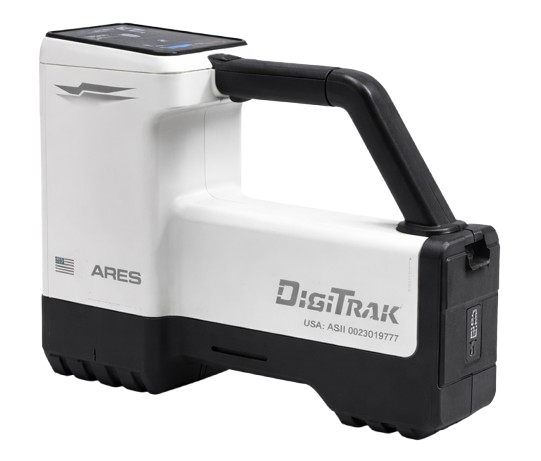

DigiTrak ARES

New For 2026:

The DigiTrak ARES system is an AI-powered underground locating solution designed to make Horizontal Directional Drilling easier, faster and more accurate.

It includes:

Advanced scanning technology
Real-time data analysis
Over-the-air updates

ARES helps operators confidently locate utilities and guide drill heads even in challenging environments.

A Smarter Way to Locate

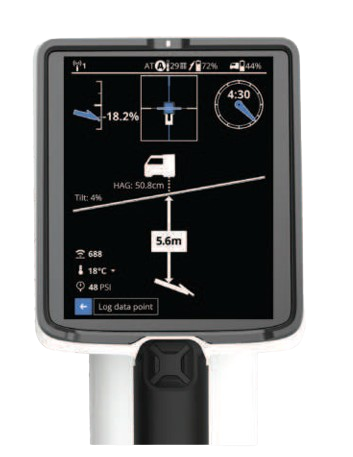

The ARES interface provides clear displays and step-by-step guides to help operators drill accurately. Users can input bore depth and ground conditions so the system can determine the most reliable signal frequencies before drilling begins.

Key Features

AI-powered scanning that automatically
selects optimal frequencies.
Scans over 8,000 frequencies for reliable
signals in high-interference areas.
Faster setup through automatic bore-path
scanning.
Real-time depth readings and pitch
indicators.
Over-the-air updates via Wifi.
Built-in GPS tracking and anti-theft
protection.

ARES System Includes

2x larger screen
Real-time depth display
Built in GPS tracking
Bluetooth connectivity
Utility logging capability
Digi-Level for precise measurements

Supercore Transmitter

Key Specifications

Frequency Range: 8,000+ selectable
frequencies
Locator Battery Life: Up to 12 hours
Transmitter Battery Life: Up to 100
hours
Depth Capability: Up to 49 m
Data Range: Up to approximately 61 m
Connectivity: Bluetooth, Wi‑Fi, GPS

One Transmitter Does It All

Wideband and rebar compatibility
Fits standard transmitter housing
Automatic pairing with locator
Fluid pressure monitoring

Battery Performance

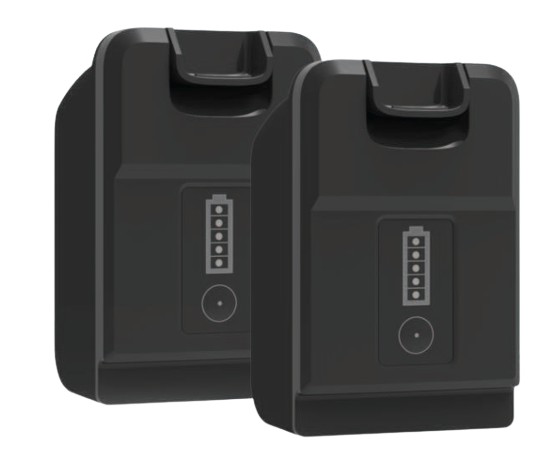

ARES Locator Battery

Up to 12 hours runtime
USB-C charging
Fully charges in 3 hours
Up to 500 charge cycles

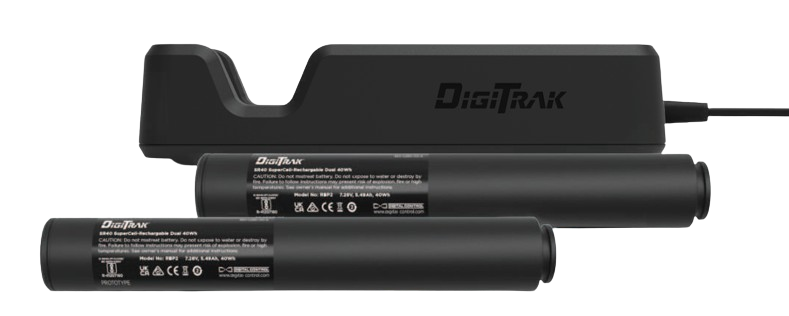

SuperCell-R Transmitter Battery

Up to 100 hours runtime
Fully charges in 4 hours
Up to 300 charge cycles
